Introducing Soulyam CYKPJ Automatic Card Sorting Machine – Upgrade Your Card Production Line
The global market for game cards, anime collectible cards, blind box opening cards, and standard playing cards is growing at a high rate. Card manufacturers are facing urgent demands for higher efficiency, stricter precision, lower labor costs, and more stable production.
To solve these industry pain points, Zhejiang Soulyam Machinery launches the new-generation CYKPJ automatic card sorting machine – a fully integrated equipment combining feeding, positioning, die stamping, slitting and collecting. With 20+ years of packaging machinery R&D experience, this machine becomes the top choice for automated card production worldwide.
About Zhejiang Soulyam Machinery Co., Ltd.
Founded in 2005, Zhejiang Soulyam Machinery is a high-tech enterprise integrating R&D, design, production, sales and after-sales service. Located in Pingyang, Wenzhou – China’s core packaging machinery manufacturing base, we cover 20,000 ㎡ workshop with 200 staff and annual output of 4,000+ sets.
Our company has obtained ISO9001, EU CE certification and GMP compliance, with a number of national patented technologies. Our main products include wet wipe production lines, flow wrappers, heat shrink machines, cartoning machines and card processing equipment, exported to Southeast Asia, Middle East, Europe, Africa and the United States.
What is CYKPJ Automatic Card Sorting Machine?
The CYKPJ automatic card sorting machine is a new-generation multi-functional card processing equipment independently developed by Soulyam. It integrates the advantages of global card machinery and 20+ years of on-site production experience, specially designed for:
- Game cards
- Anime & collectible cards
- Blind box opening cards
- Standard playing cards
- Various printed paper cards
This machine greatly improves card surface quality, reduces labor input, shortens production cycles and helps factories achieve high-standard automated production.
Core Performance Features of CYKPJ Card Sorting Machine
- Servo-Driven Feeding SystemAdopts 4th-generation servo feeder instead of traditional transmission shafts, improving stability and service life significantly.
- Adjustable Feeding TableServo motor supports ±25mm left-right adjustment to correct paper alignment deviation automatically.
- Suction Air PU Conveying BeltEquipped with 200mm wide PU belts with bottom suction, ensuring smooth and stable paper feeding.
- Anti-Static Stainless Steel PlatformStainless steel checkered plate eliminates static electricity, preventing paper skew, double-sheet feeding and surface scratches.
- 6-Axis Servo LinkageFull machine uses 6-axis servo linkage, supporting micro-adjustment of each power head for ultra-high processing accuracy.
- Wireless Remote Control & SupportSupports wireless networking; our team can provide remote troubleshooting to reduce downtime.
- Hydraulic & Photoelectric ProtectionBuilt-in photoelectric sensors and hydraulic system. The machine alarms automatically when misalignment or sensor failure occurs, ensuring safe operation.
- Flexible Indexing ControlServo-controlled indexing unit supports single-card or double-card grid movement, improving speed and reducing stamping frequency.
Detailed Equipment Functions & Core Unit Working Principles

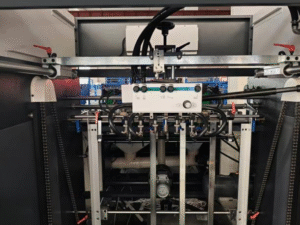

1. Automatic Paper Feeder
Adopts the 4th-generation servo-driven Feida, replacing the traditional transmission shaft mechanism to enhance transmission smoothness and service life, ensuring stable operation and higher capacity.

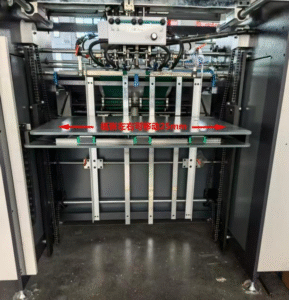

2.Feeder Stack Table
When paper placement deviates in size, the servo motor realizes ±25mm left-right adjustment for accurate alignment.

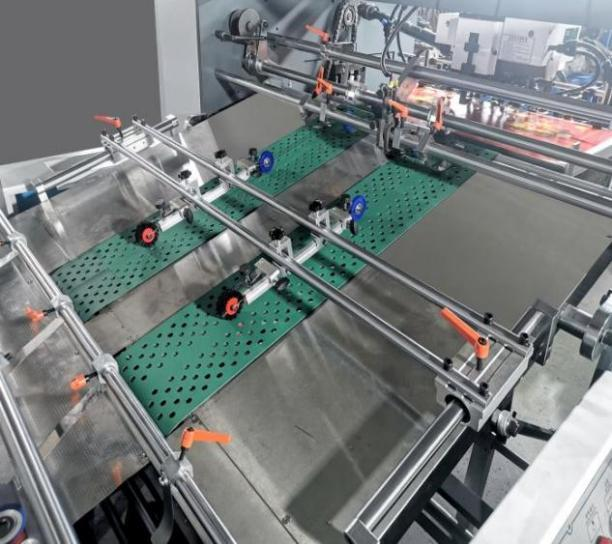

3. paper conveying table
The paper conveying platform adopts a servo drive structure to ensure smooth highspeed paper feeding. Ensure accuracy under uniform operation. Under the conditions of acceleration and deceleration operation, the automatic paper feeder hasrestrictions on the maximum and minimum paper sizes (subject to the technical parameters). In addition to
the paper width being restricted by the format, the maximum and minimum paper lengths should be limited in a ratio of 3:1.

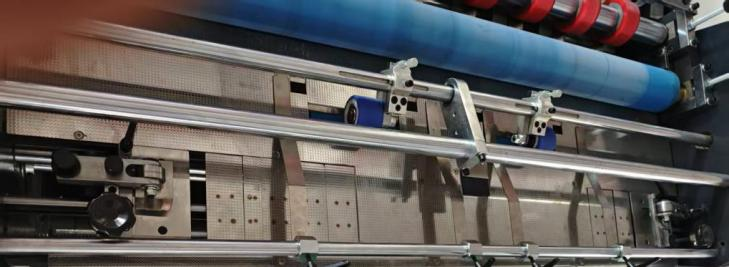

4．Dual side lay system
This machine adopts a dual side lay system, capable of both forward and reverse pulling, ensuring stability and precision
during operation.
5．longitudinal cutting unit

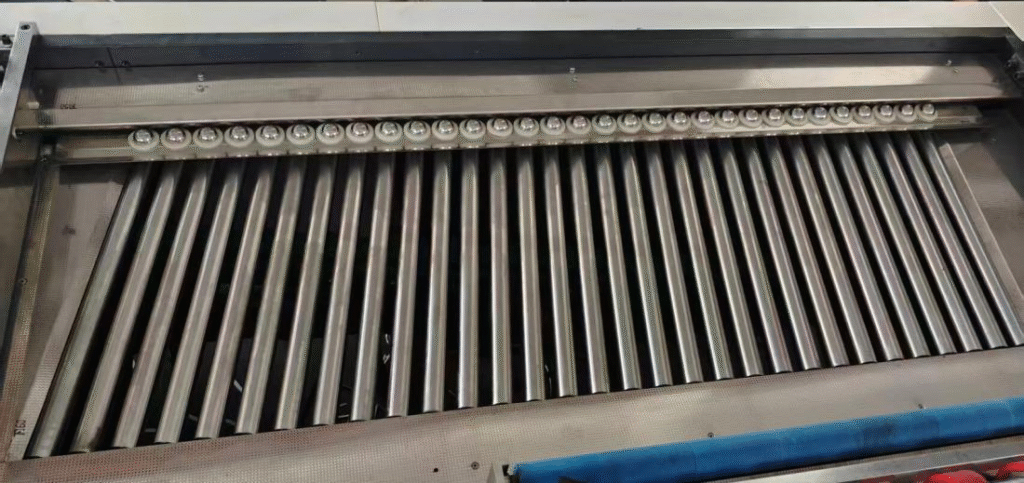

6、Diagonal ball-type side lay system
This machine uses inclined steel tubes in coordination with steel balls to keep the paper tight against the side guide during conveying, ensuring no deviation when cross cutting. The side guide can be fine-tuned forward and backward.

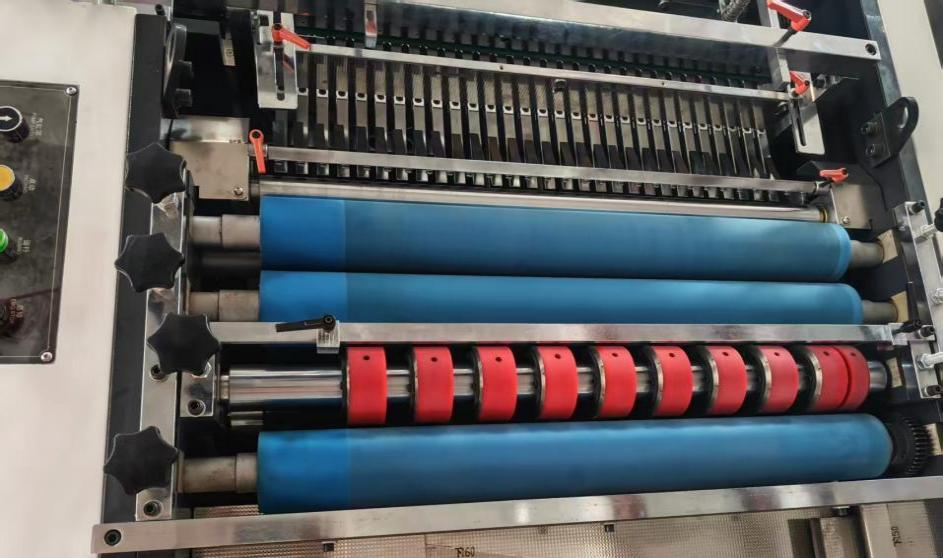

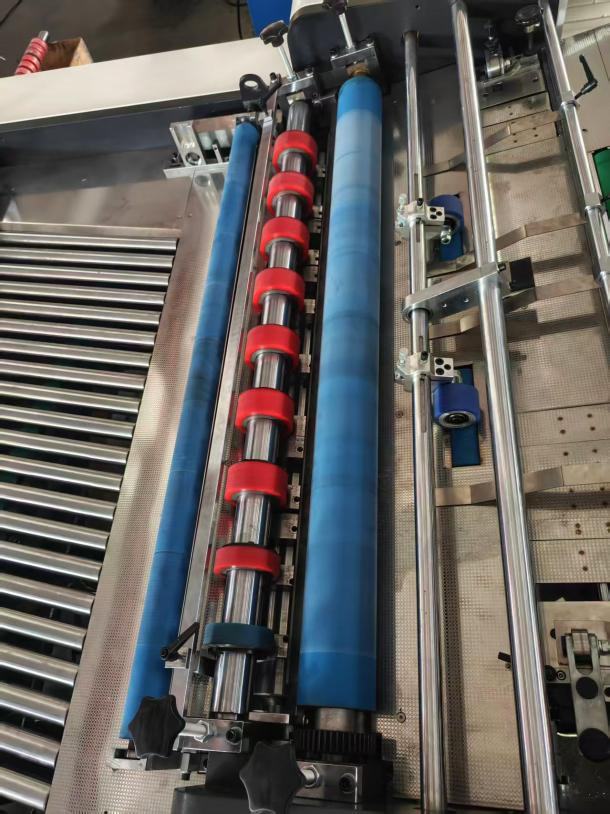

7．Cross cutting unit
Unit 1: Fixed rubber roller
Unit 2: Upper and lower slitting unit
Unit 3: Traction unit
Unit 4: Breaking or conveying unit

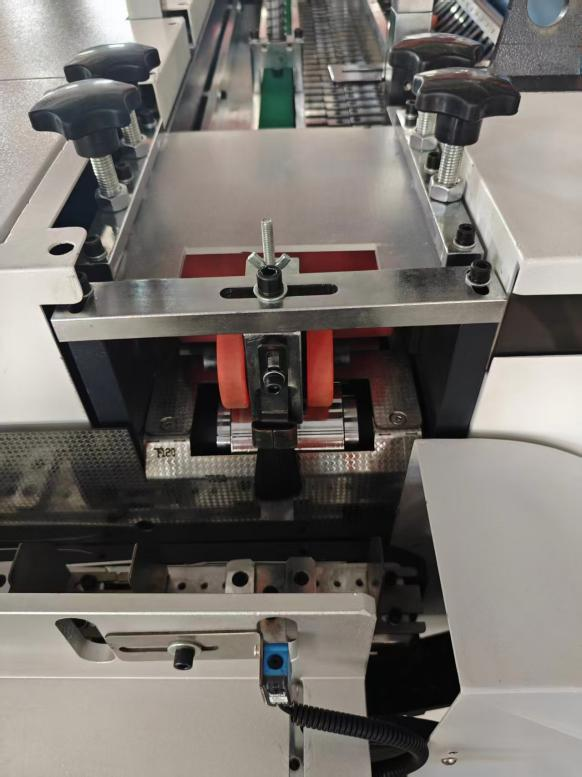

8．Sheet outlet
Group 1: Fixed
Group 2: Traction or breaking
Group 3: Sheet outlet

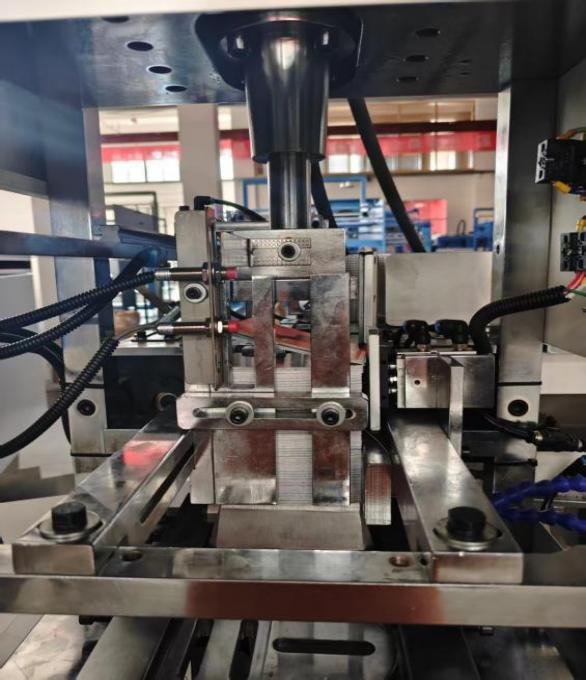

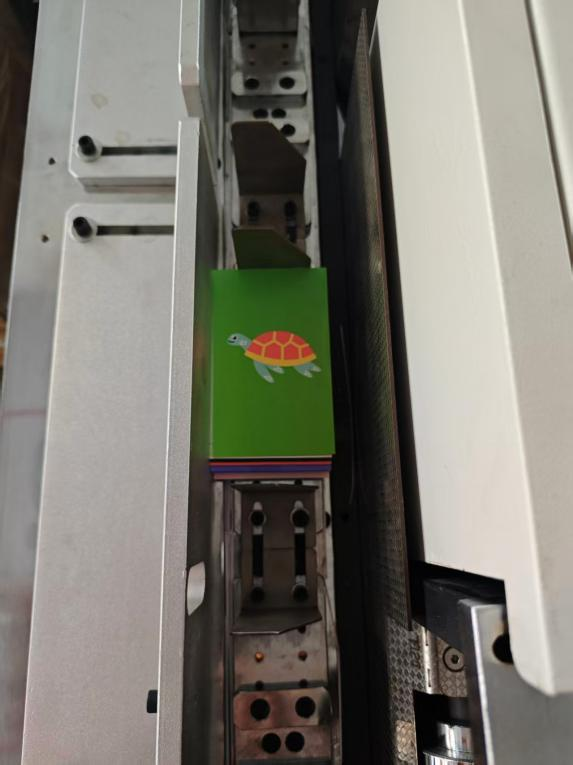

9．Indexing unit
Controlled by a servomotor, the grid movement canbe set to moveonce after each card is played or onceafter two cards are
played (stacking twodecks of cards), which canincrease the speed and reduce the number of stamping operations.
10．Hydraulic system
Technical Parameters (CYKPJ-760 & CYKPJ-1050)
| Parameter | CYKPJ-760 | CYKPJ-1050 |
|---|---|---|
| Max. Paper Size | 760mm × 600mm | 1050mm × 720mm |
| Min. Paper Size | 320mm × 320mm | 310mm × 290mm |
| Paper Thickness | 250–800g/㎡ | 150–1200g/㎡ |
| Production Speed | 600–3000 sheets/h | 600–3000 sheets/h |
| Max. Card Size | 110mm × 110mm | 150mm × 155mm |
| Min. Card Size | 44mm × 60mm | 44mm × 60mm |
| Total Power | 12kw | 12kw |

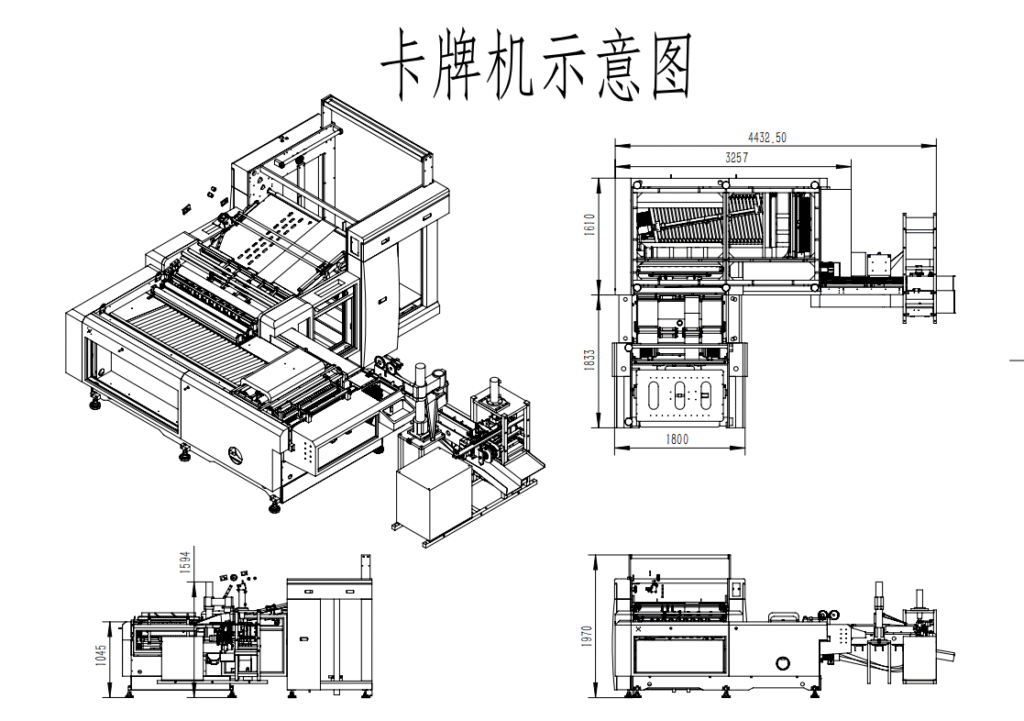

| Overall Dimension (L×W×H) | 4350×3250×1400mm | 5020×5230×2000mm |
| Net Weight | Approx. 3500kg | Approx. 4500kg |
Standard Production Process
The CYKPJ card sorting machine runs a fully automatic continuous process:
Automatic Feeding → Servo Driving → Double Side Guides → Ball Inclined Pulling → Die Stamping → Cutting & Setting → Longitudinal Slitting → Transverse Slitting → Paper Collecting
Each station is precisely coordinated to ensure high efficiency and consistent card sizing.
High-Quality Component Configuration
We use international famous-brand parts to ensure long-term stable operation:
- Motor: Dongli Motor
- Lifting Motor: Asdon
- Servo Driver & Controller: Shanghai Flexem
- Sensor: SICK
- Vacuum Pump: EUROVAC
- Linear Guide: Taiwan Brand
- Cylinder & Solenoid Valve: AirTAC
- Electric Parts: Schneider, CHINT, Mean Well
- Bearing: HRB
- Conveyor Belt: TEITZ POWE
Application Scenarios
This automatic card sorting machine is widely used in:
- Game card manufacturing lines
- Anime & collectible card processing
- Blind box card production
- Playing card factory automation
- Custom printed paper card production
Complete After-Sales Service System
Pre-Sales
24-hour online consultation, professional model selection, customized design and technical support.
On-Sale
Free door-to-door delivery, installation, commissioning and operator training until your team can operate independently.
After-Sales
- 2-hour fast response & remote guidance
- 24-hour on-site service (72 hours for remote areas)
- Free maintenance, repair and parts replacement during warranty
- Lifetime technical support & factory-price spare parts supply
Why Choose Soulyam CYKPJ Automatic Card Sorting Machine?
- 20+ years of packaging machinery R&D and manufacturing experience
- 6-axis servo linkage for high precision and stability
- Anti-static suction conveying to protect card surface
- Remote control function for easy troubleshooting
- ISO9001 & CE certified, safe and reliable
- Global after-sales network, fast service response
- Customizable for different card sizes and production demands
Get Your Custom Card Production Solution Now!
If you are looking for a high-speed, stable and precise automatic card sorting machine to upgrade your production line, contact Soulyam Machinery today for a free quote and professional solution.
